Product description:

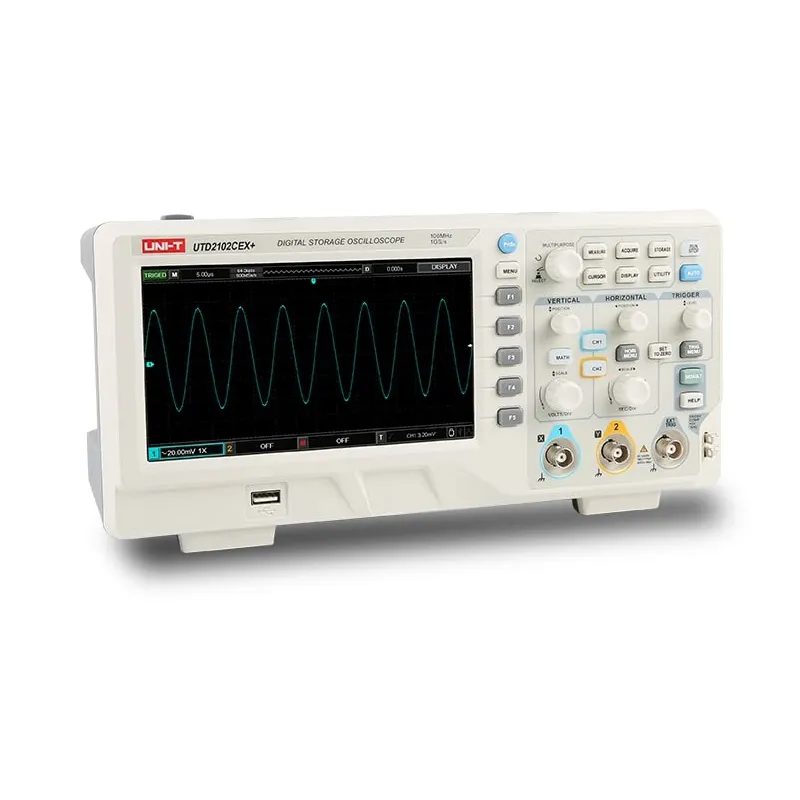

The digital storage oscilloscope UNI-T UTD2102CEX+ is used to test whether the signals of the hash board are connected, detect faults faster, provide more prosperous trigger methods, 34 kinds of automatic parameter measurement, and standard mathematical operation functions. Optimize panel operation, significantly improve work efficiency, and efficiently meet the measurement requirements of complex signals.

Attention: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.

For more details about the product, please check: How to use the oscilloscope UTD2102CEX+?

Technical indicators：

Channels: 2

Bandwidth: 100MHz

Sample Rate: 1GS/s

Rise Time: ≤ 3.5ns

Memory Depth: 25kpts

Waveform Acquisition Rate: ≥ 2000wfms/s

Vertical Sensitivity: 1mV ~ 20V/div

Time-Based Range: 2ns/div ~ 50s/div

Storage: Setup, Wave, Bitmap

Trigger Modes: Edge, Pulse, Alternate

Interfaces: USB OTG

Running interface display:

Interface description:

Product accessories list:

1. Oscilloscope host

2. Product warranty / download guide

3. USB data cable

4. Capacitance compensation adjustment pen

5. Probe x2 (1:1, 10:1 switchable)

6. CN plug power cord

Notice:

In the actual use of the test pen of the oscilloscope, because the original clip cable is short, it is not convenient for us to test the signal waveform. We need to cut the clip cable and find a cable of about the same thickness to go through it.
